Mitsui Plastics

RACRESTER™ (ACM) - Acrylic Rubber

Purchase on YourMaterialHub.com
Mitsui Plastics

RACRESTER™ (ACM) - Product Line Overview

Mitsui Plastics offers a line of high-performance acrylic rubbers (ECO)  engineered for high performance automotive and industrial applications. Produced from highly purified acrylic esters in a Japanese facility, the product line includes multiple grades tailored for specific requirements: standard, low-Mooney, cold resistance, high-temperature resistance, epoxy, carboxyl, and special grades for very low-temperature environments making them ideal for automotive components, seals, gaskets, battery cooling hoses, and more.

Our acrylic rubber products have a proven track record being approved for use by numerous automakers throughout the world and are backed by an integrated production process from monomer to polymer — ensuring consistent quality and supply security for customers worldwide.

Mitsui Plastics

Key Benefits & Advantages

  • High Purity & Stable Quality
    • Our elastomers, made from purified monomers in tightly controlled Japanese facilities, offer consistent quality, heat stability, low odor, and reliable performance in demanding environments.
  • Customizable Performance
    • Our elastomers come in multiple grades based on cure site monomer (active chlorine, epoxy, carboxyl), allowing tailored heat, oil, and cold resistance for specific needs. They offer superior oil resistance at high temperatures, excellent heat tolerance at a lower cost than FKM and VMQ, and remain stable in dielectric oil, ideal for EV battery cooling.

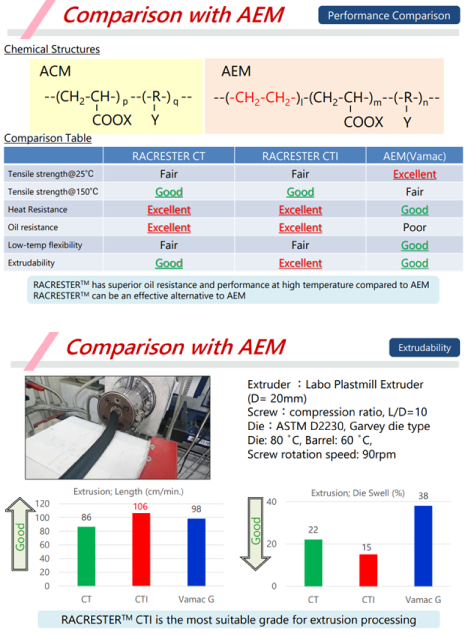

  • Enhanced AEM Replacement Option
    • A specialized grade has been engineered to deliver enhanced extrudability and high scorch resistance, serving as an efficient alternative to AEM while offering cost advantages.
  • Eco-Friendly Rubber Solution
    • All grades include a bio-based raw material, comprising up to 45% biomass content, to help support your sustainability goals.
  • Proven Track Record
    • Backed by nearly a decade of production experience and being approved by global companies throughout the world, our elastomers have a proven history of successful use in various industries. This proven reliability gives customers confidence in consistent quality, supported by one of the world’s leading suppliers of acrylic rubbers.
Mitsui Plastics

Major Applications & Markets

  • Automotive
    • Air intake hoses (AIH), turbocharger hoses (TCH), intercooler hoses (ICH), power steering hoses (PSH), seals, and gaskets
  • Industrial
    • Components requiring high oil and heat resistance, such as seals and gaskets in heavy machinery
  • Electric Vehicles
    • Used in environments with dielectric oils for battery cooling
Mitsui Plastics

Roles in Major Applications

  • Automotive Hoses & Gaskets
    • Provides reliable sealing and insulation in automotive hoses and gaskets, ensuring durability under high temperature and oil exposure
  • Automotive Turbocharger and Intercooler Hoses
    • Enhances performance and longevity of turbocharger and intercooler hoses due to superior heat and oil resistance
  • Electric Vehicle Hoses
    • Supports advanced EV cooling systems by maintaining stability in dielectric oils
Mitsui Plastics

Technical Characteristics

  • Polymer Structure:
    • Chemical structure includes epoxy, active chlorine, and carboxyl cure-site monomers for tailored performance
    • Mooney viscosity ranges from 33 to 55 (ML(1+4)@100°C), depending on grade
    • Grades offer varying balances of heat, oil, and cold resistance:
      • Ethyl-based: Excellent heat, good oil, fair cold resistance
      • Butyl-based: Excellent heat and cold resistance, fair oil resistance
      • Methoxyethyl-based: Fair heat, excellent oil and cold resistance
Mitsui Plastics

Typical Properties

  • 100% Modulus: ~4.9–10.7 MPa
  • Tensile Strength at Break (TSb): ~12.1–14.1 MPa
  • Elongation at Break (Eb): ~190–230%
  • Hardness (Shore A): ~58–65 pts
  • Heat Aging (175°C, 72 hrs):
  • Hardness change: +3 to +6 pts
  • TSb change: -20% to +5%
  • Eb change: +7% to +12%
  • Compression Set (ISO 815):
  • At 150°C: ~26–29%
  • At 175°C: ~36–45%
  • Oil Resistance (IRM903 oil, 150°C, 72 hrs): Volume change ~+16% to +17%
  • Low-Temperature Flexibility (Gehman Torsion): T10 ≈ -21°C for standard grades; down to -44°C for ultra low-temp grades
Properties & Key Features

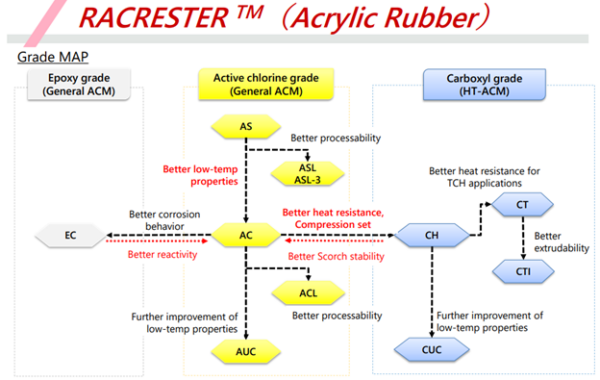

RACRESTER™ Product Grades

*For detailed technical data and custom solutions, please send us an inquiry.

Grade Type/Series Mooney Viscosity (ML(1+4)@100°C) Tg (°C) Key Properties & Features Main Applications
ASL Active Chlorine 45 45 Lower viscosity for improved processability, good heat/oil resistance Seals, gaskets
AC Active Chlorine 45 45 Enhanced cold resistance, good oil resistance Intercooler hoses (ICH), AIH, PSH, seals, gaskets
ACL Active Chlorine 37 37 Further improved low-temp properties, easier processing Intercooler hoses, AIH
AUC Active Chlorine 33 33 Outstanding flexibility at very low temperatures Gaskets
EC Epoxy 38 38 Good cold resistance, better scorch stability, improved reactivity AIH, seals
CH Carboxyl 35 35 High temperature resistance, better compression set, improved corrosion behavior Gaskets, AIH, turbocharger hoses (TCH)
CT Carboxyl 39 39 Excellent heat resistance, superior oil resistance, better for TCH applications Turbocharger hoses, seals, gaskets
CT-4 Carboxyl 40-56 39 Same as CT with higher viscosity for performance applications High performance requirement turbocharger hoses, seals, gaskets
CTI Carboxyl 40 39 Superior extrudability, excellent heat resistance, ideal AEM alternative Turbocharger hoses, extrusion processing
CUC Carboxyl 33 33 Excellent flexibility at very low temperatures AIH, gaskets
